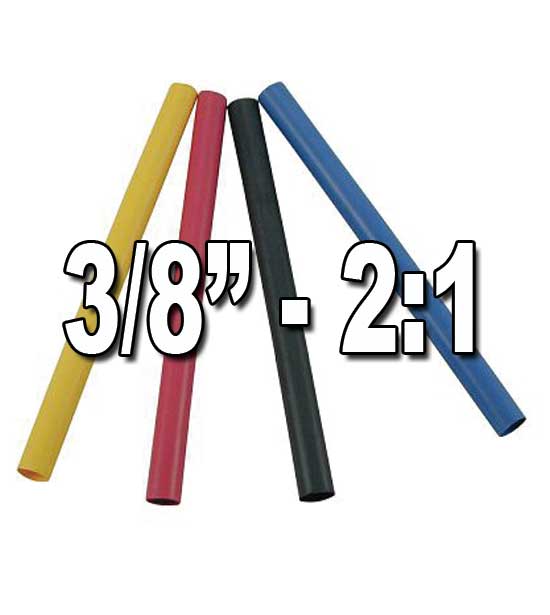

3/8” (.375”) 9.52mm 2 to 1 Single/Thin-Wall Polyolefin Heat Shrink Tubing
  • 3/8” (.375”) 9.52mm 2 to 1 Single/Thin-Wall Polyolefin Heat Shrink Tubing
  • 3/8” (.375”) 9.52mm 2 to 1 Single/Thin-Wall Polyolefin Heat Shrink Tubing
  • 3/8" 2:1 Single/Thin Wall Heat Shrink Polyolefin Tubing -
  • 3/8" 2:1 Single/Thin Wall Heat Shrink Polyolefin Tubing

3/8" 2:1 Single/Thin Wall Heat Shrink Polyolefin Tubing

  • Meets requirements of SAE-AMS-DTL-23053/5 (formerly MIL-I-23053/5, MIL-DTL-23053/5), Class 1, Class 2 (Clear), Class 3.
  • Meets requirements of AMS-3636 & AMS-3637.
  • RoHS Compliant.
  • UL Recognized: File E-39100.
  • CSA Certified: CSA LR-38227.
  • ABS Approved.
  • Continuous Operating Temperature: -55C (-67F) to 135C (275F) & up to 300C (572F) for short durations.
  • Shrink Temperature: 121C (250F).
  • Shrink Ratio: 2 to 1 (shrinks to 1/2 its original diameter).
  • Voltage Rating: 600Volts Maximum.  Cross-Linked Polyolefin Heat Shrink Tubing.  Single/Thin-Wall.
  • Flame-Retardant.
  • Flammability Rating: UL224 / VW-1.
  • NOTE: Clear tubing is NOT flame retardant/rated or UL listed.
  • Note: 4' sticks may be rolled or folded for shipping

    JT&T’s 2 to 1 Single/Thin Wall Cross-Linked Polyolefin Heat Shrink Tubing is irradiated, flexible & intended for general purpose applications requiring recognition by military & industrial specifications. UL recognized, CSA certified, RoHS compliant & ABS approved. Meets requirements of SAE-AMS-DTL-23053/5 (formerly MIL-I-23053/5, MIL-DTL-23053/5), Classes 1, 2 (Clear), 3.

    It is single-wall, flame-retardant, mechanically strong & will not melt or split when shrunk over irregularly-shaped objects. Applications include insulation, jacketing wire bundles, mechanical protection, physical/electrical protection of components, strain relief, solder insulation & lightweight harnessing where superior abrasion resistance is a plus. Also, used to identify & color-code electrical connections & wire bundles.

    Temperature rating for continuous operation from -55°C (-67°F) to 135°C (275°F) & up to 300°C (572°F) for short durations. Shrink Ratio is 2 to 1 (shrinks to 1/2 its original diameter). Shrink Temperature is 121°C (250°F). NOTE: Clear tubing is NOT flame retardant or UL listed.

    ⚠ WARNING: Cancer and reproductive harm - www.p65warnings.ca.gov

    Item # Description/Size Price Quantity
    4006H
    3/8" 2:1 Black Heat Shrink Tubing, 4" pieces, qty 6
    		 $2.48
    4026H
    3/8" 2:1 Red Heat Shrink Tubing, 4" pieces, qty 6
    		 $2.48
    4006-0F
    3/8" 2:1 Black Heat Shrink Tubing, 6" pieces, qty 8
    		 $4.43
    4006-1F
    3/8" 2:1 Clear Heat Shrink Tubing, 6" pieces, qty 8
    		 $4.43
    4006-2F
    3/8" 2:1 Red Heat Shrink Tubing, 6" pieces, qty 8
    		 $4.43
    4006-5F
    3/8" 2:1 Green Heat Shrink Tubing, 6" pieces, qty 8
    		 $4.43
    4006-6F
    3/8" 2:1 Blue Heat Shrink Tubing, 6" pieces, qty 8
    		 $4.43
    4006-7F
    3/8" 2:1 Yellow Heat Shrink Tubing, 6" pieces, qty 8
    		 $4.43
    4006-9F
    3/8" 2:1 White Heat Shrink Tubing, 6" pieces, qty 8
    		 $4.43
    J-8506
    3/8" 2:1 Black Heat Shrink Tubing, 4 ft stick, qty 1
    		 $3.84
    J-8516
    3/8" 2:1 Clear Heat Shrink Tubing, 4 ft stick, qty 1
    		 $3.84
    J-8526
    3/8" 2:1 Red Heat Shrink Tubing, 4 ft stick, qty 1
    		 $3.84
    J-8536
    3/8" 2:1 Yellow Heat Shrink Tubing, 4 ft stick, qty 1
    		 $3.84
    J-8546
    3/8" 2:1 Blue Heat Shrink Tubing, 4 ft stick, qty 1
    		 $3.84
    J-8556
    3/8" 2:1 White Heat Shrink Tubing, 4 ft stick, qty 1
    		 $3.84
    J-8586
    3/8" 2:1 Green Heat Shrink Tubing, 4 ft stick, qty 1
    		 $3.84
    J-8806
    3/8" 2:1 Black Heat Shrink Tubing, 35ft Spool
    		 $27.94
    J-8816
    3/8" 2:1 Clear Heat Shrink Tubing, 35ft Spool
    		 $27.94
    J-8826
    3/8" 2:1 Red Heat Shrink Tubing, 35ft Spool
    		 $27.94
    J-8836
    3/8" 2:1 Yellow Heat Shrink Tubing, 35ft Spool
    		 $27.94
    J-8846
    3/8" 2:1 Blue Heat Shrink Tubing, 35ft Spool
    		 $27.94
    J-8856
    3/8" 2:1 White Heat Shrink Tubing, 35ft Spool
    		 $27.94
    J-8886
    3/8" 2:1 Green Heat Shrink Tubing, 35ft Spool
    		 $27.94
    4059H
    3/8" 2:1 Heat Shrink Tubing, 4" pieces, Assorted Colors, Qty 5
    		 $2.48
    4006S-5DOT
    3/8" 2:1 Green Heat Shrink Tubing, 200ft Spool
    		 $79.93
    4006S-1DOT
    3/8" 2:1 Clear Heat Shrink Tubing, 200ft Spool
    		 $79.93
    4006S-2DOT
    3/8" 2:1 Red Heat Shrink Tubing, 200ft Spool
    		 $79.93
    4006S-7DOT
    3/8" 2:1 Yellow Heat Shrink Tubing, 200ft Spool
    		 $79.93
    4006S-6DOT
    3/8" 2:1 Blue Heat Shrink Tubing, 200ft Spool
    		 $79.93
    4006S-0DOT
    3/8" 2:1 Black Heat Shrink Tubing, 200ft Spool
    		 $79.93
    4006S-9DOT
    3/8" 2:1 White Heat Shrink Tubing, 200ft Spool
    		 $79.93
