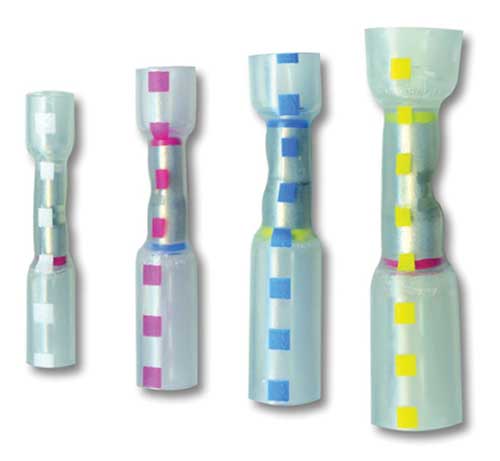

In-Line Multiple Wire Butt Connectors Heat Shrink Insulated - Crimp Seal
  • In-Line Multiple Wire Butt Connectors Heat Shrink Insulated - Crimp Seal
  • In-Line Multiple Wire Butt Connectors Heat Shrink Insulated - Crimp Seal

In-line, Multi Wire Butt Connectors, Heat Shrink, Crimp Seal

4x Adhesive on inside melts down to protect wires from corrosion

Connects two wires of smallest listed AWG to one of the same gauge on the opposite end. For instance on the Blue Dash (2271) version, you can put two 14-16 GA wires on the 'yellow' end and one 14-16 GA wire on the 'blue' end.

Premium alternative to use in place of quick taps or scotch loks

Color stripes on connector indicates best crimp die to use

Color dash indicates wire size that can be used

    Made in the USA with 3M heat shrink tubing.The best way to connect multiple wires. This terminal features 4x the standard adhesive - this allows the sealant to get down between the wires and prevent any contaminants from entering.

    ⚠ WARNING: Cancer and reproductive harm - www.p65warnings.ca.gov

    See Additional Info tab for demonstration video.

    Item # Description/Size Price Quantity
    2269J
    24-22 to 20-18AWG, White dash, In-line, Multi Wire Butt Connectors, Heat Shrink, Crimp Seal, Qty 5
    		 $8.55
    2269F
    24-22 to 20-18AWG, White dash, In-line, Multi Wire Butt Connectors, Heat Shrink, Crimp Seal, Qty 10
    		 $15.71
    2269L
    24-22 to 20-18AWG, White dash, In-line, Multi Wire Butt Connectors, Heat Shrink, Crimp Seal, Qty 50
    		 $68.28
    2270J
    20-18 to 16-14AWG, Red dash, In-line, Multi Wire Butt Connectors, Heat Shrink, Crimp Seal, Qty 5
    		 $9.04
    2270F
    20-18 to 16-14AWG, Red dash, In-line, Multi Wire Butt Connectors, Heat Shrink, Crimp Seal, Qty 10
    		 $17.42
    2270L
    20-18 to 16-14AWG, Red dash, In-line, Multi Wire Butt Connectors, Heat Shrink, Crimp Seal, Qty 50
    		 $71.99
    2271J
    16-14 to 12-10AWG, Blue dash, In-line, Multi Wire Butt Connectors, Heat Shrink, Crimp Seal, Qty 5
    		 $11.64
    2271F
    16-14 to 12-10AWG, Blue dash, In-line, Multi Wire Butt Connectors, Heat Shrink, Crimp Seal, Qty 10
    		 $21.36
    2271L
    16-14 to 12-10AWG, Blue dash, In-line, Multi Wire Butt Connectors, Heat Shrink, Crimp Seal, Qty 50
    		 $95.16
    2272J
    12-10 to 8AWG, Yellow dash, In-line, Multi Wire Butt Connectors, Heat Shrink, Crimp Seal, Qty 5
    		 $16.40
    2272F
    12-10 to 8AWG, Yellow dash, In-line, Multi Wire Butt Connectors, Heat Shrink, Crimp Seal, Qty 10
    		 $31.88
    2272L
    12-10 to 8AWG, Yellow dash, In-line, Multi Wire Butt Connectors, Heat Shrink, Crimp Seal, Qty 50
    		 $144.07
